DOC ID13

CELLULOID PEARL INLAY APPLICATION INSTRUCTIONS

Tools needed:
Craft knife or scalpel
Small flat chisel
Adhesive (epoxy resin or superglue)
Wood filler (car body filler works best)
80 grit sandpaper
120 grit sandpaper
600 grit sandpaper
Can of primer spray paint
Can of black spray paint (or what ever colour you choose)
Can of clear lacquer

Instructions and photos were taken from an actual inlay installation process

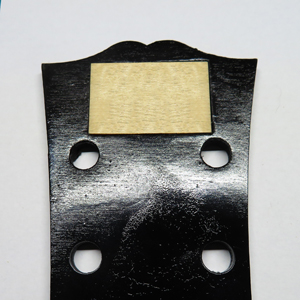

1. Place the inlay template onto the headstock as per diagram. Use some masking tape to hold position.
Use a sharp instrument such as a craft knife or scalpel to score around the edge of the inlay frame.

2. With a small flat chisle carve out the inside of the rectangle to 1.5mm depth.

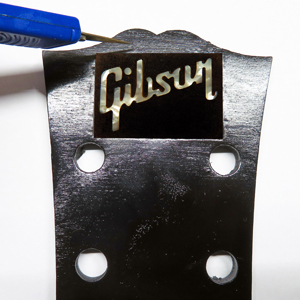

3. Position the inlay frame into the recess and make sure it is flush with the headstock.
If it is proud then shave a little more depth. Glue in the inlay template and let dry.

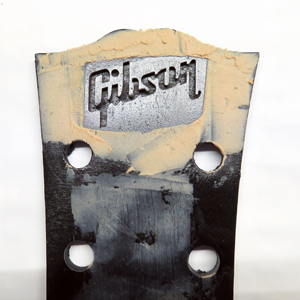

4. Use some wood filler, or better still automotive body filler around the edge of the template and headstock.

6. Rub down filler until flush and smooth. Use fine 600 grit sandpaper to get a smooth finish

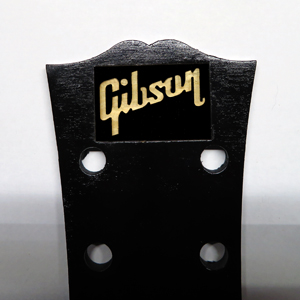

Finish with primer and let dry overnight, then spary on the black coat and againleave overnight.
Finally spray several coats of clear lacquer, then glue in the pearl inlay.

Alternatively, you can glue in the pearl inlay and clear lacquer afterwards if prefered.
